Sale!

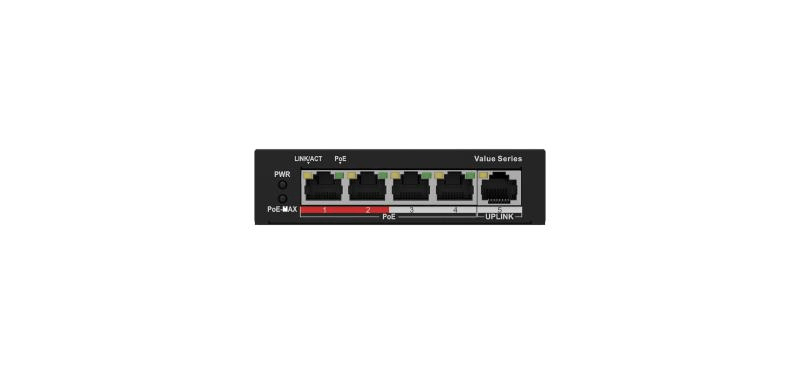

HiLook NS-0105P-35 4-Port PoE Switch 100Mbps, Long-Range, 35W

Original price was: AUD $71.00.Current price is: AUD $50.00. inc GST

Part Number: NS-0105P-35

Compact and durable, the HiLook NS-0105P-35 4-Port PoE Switch delivers 100Mbps speeds, up to 250m range, and 35W power budget—perfect for powering IP cameras or PoE devices.



Unmanaged switch with 4 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port

All ports support 6 kV lighting protection

35 W PoE power budget

Maximum transmission distance is 250 meters

MAC address auto learning and auto aging

Datasheet

210124031143-NS-0105P-35





The HiLook NS-0105P-35(B) 4-Port 100Mbps Long-Range PoE Switch is an affordable, compact, and high-performance unmanaged switch ideal for small-scale surveillance or networking needs. Featuring 4 PoE ports and 1 uplink port, this switch delivers stable power and data transmission for up to 250 metres—far beyond traditional Ethernet limits.

With support for IEEE 802.3af/at standards, each PoE port can deliver up to 30W, with a total power budget of 35W. Prioritised ports 1–2 ensure critical devices receive bandwidth and power first, and the integrated 6KV surge protection safeguards your connected equipment in harsh environments. Its fanless, high-strength metal housing ensures silent, long-term operation even under demanding conditions.

Whether you’re powering IP cameras, access points, or other PoE devices, the NS-0105P-35 is an excellent entry-level solution for extending your network with reliability and cost-effectiveness.

 Key Features:

  •  4 × 100 Mbps PoE ports + 1 × 100 Mbps uplink port

  • Long-range transmission up to 250 metres

  • Supports IEEE 802.3af/at PoE standards

  • Total PoE budget: 35W (max 30W per port)

  •  Surge protection: 6KV on PoE ports

  • High-priority ports for bandwidth-sensitive devices

  • Fanless, silent metal design for durability

  • Plug & play unmanaged switch—no configuration required

  • Ideal for powering IP cameras, VoIP phones, or Wi-Fi access points

Technical Specifications:

SpecificationDetails
ModelNS-0105P-35(B)
PoE Ports4 × 100 Mbps (802.3af/at)
Uplink Port1 × 100 Mbps Ethernet
Max Port Power30W
Total Power Budget35W
Transmission DistanceUp to 250 metres
Switching Capacity1 Gbps
Forwarding Rate0.744 Mpps
Operating Temperature-10°C to 55°C
Surge Protection6KV (PoE ports)
Mounting/DesignMetal shell, fan-free, compact design
Dimensions (L×H×D)105 × 27.6 × 83.1 mm
Weight0.48 kg (gross), 0.2 kg (net)

Additional information

Weight2 kg
Dimensions38 × 21 × 54 cm
