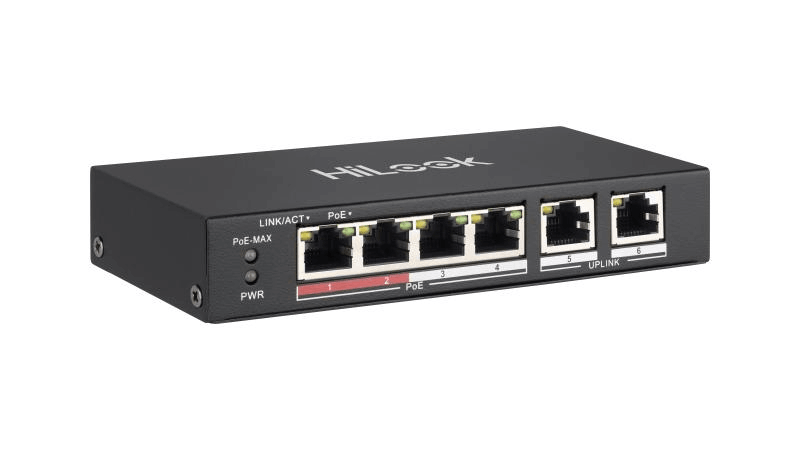

24/06/2025HiLook NS-0106P-35 4-Port PoE Switch – Unmanaged, 2x Uplinks, Long Range, Metal Case
Original price was: AUD $82.00.AUD $65.00Current price is: AUD $65.00. inc GST
Part Number: NS-0106P-35
Compact and reliable HiLook NS-0106P-35 4-Port PoE Switch with 2 uplink ports, 35W PoE power budget, long-range transmission up to 250m, and surge protection. Fan-free metal design ideal for CCTV and small network setups.
4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
6 KV surge protection for PoE ports.
Up to 250 m long-range transmission.
Wire-speed forwarding.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design
Datasheet
281024122146-Baseline_Datasheet-of-NS-0106P-35-4-Port-Unmanaged-PoE-Switch_20201211

The HiLook NS-0106P-35 is a rugged, unmanaged 4-Port PoE switch designed for reliable power and data transmission in surveillance and small business network environments. With 4 PoE ports and 2 uplink ports, this compact unit delivers solid performance, supporting long-range data transmission up to 250 metres and a 35W total PoE budget—ideal for powering CCTV cameras and other PoE devices.
Key Features:
4 × 10/100Mbps PoE Ports + 2 × 10/100Mbps RJ45 Uplink Ports
IEEE 802.3af/at PoE standards with up to 30W per port
35W total PoE budget, perfect for 4 cameras or powered devices
Long-range transmission up to 250m on Ports 1–4
Wire-speed forwarding with store-and-forward switching
Surge protection (6kV) on PoE ports
Fan-free metal housing ensures silent and durable performance
Plug-and-play simplicity with no configuration required
Specifications:
Switching Capacity: 1.6 Gbps
Packet Forwarding Rate: 0.8928 Mpps
MAC Table: 4K
Internal Buffer: 768 Kbits
Modes: Standard (default), Extend
High Priority Ports: Ports 1 and 2
Power Supply: 48VDC, 0.8A
PoE Budget: Max 35W, 30W max per PoE port
Operating Temp: -10°C to 40°C
Metal Case, Fanless for silent operation
Compliance: FCC, CE, RCM, UL, RoHS, WEEE, Reach
Applications:
HiLook and Hikvision PoE CCTV systems
Retail and small business network setups
Powering IP cameras, access points, or VoIP phones
Silent environments where fanless operation is crucial
Whether you’re setting up a CCTV system or extending your local network, the HiLook NS-0106P-35 gives you reliable PoE connectivity, long-range support, and a compact, robust form factor. Its plug-and-play design and fanless operation make it a smart choice for installers and end users alike.
HiLook PoE Switch
4 Port PoE Unmanaged Switch
Long Range CCTV Switch
Fanless Metal PoE Switch
NS-0106P-35 Datasheet
Hikvision HiLook PoE
10/100Mbps PoE Switch
Surveillance Network Switch
Additional information
Weight | 2 kg |
---|---|
Dimensions | 38 × 21 × 54 cm |
