HiLook 8 Channel Customisable CCTV Kit — Build Your Own System — 4K PoE NVR Included. Cameras, Storage and Extras Optional
AUD $194.00
Build a HiLook 8 channel customisable CCTV kit around your property instead of paying for a fixed bundle with cameras you will never mount. The 8 channel 4K PoE recorder is included as standard. Everything else is yours to choose in the configurator below, and the price adjusts as you tick each option.
The product photo is a sample configuration — it shows what this kit can become, not what ships at the base price. Only the HiLook 8 channel 4K PoE NVR is included as standard. Cameras, hard drive and accessories are optional. Select the ones you want below and the price updates to match the system you build.
HiLook CCTV Security System Kit Contains:
1 x HiLook 8 Channel 4K PoE Network Video Recorder (NVR) — NVR-108MH-C/8P(D) — NVR-108MH-C/8P(D) — included as standard
Add only what your property actually needs — every option below is part of the HiLook 8 channel customisable CCTV kit:

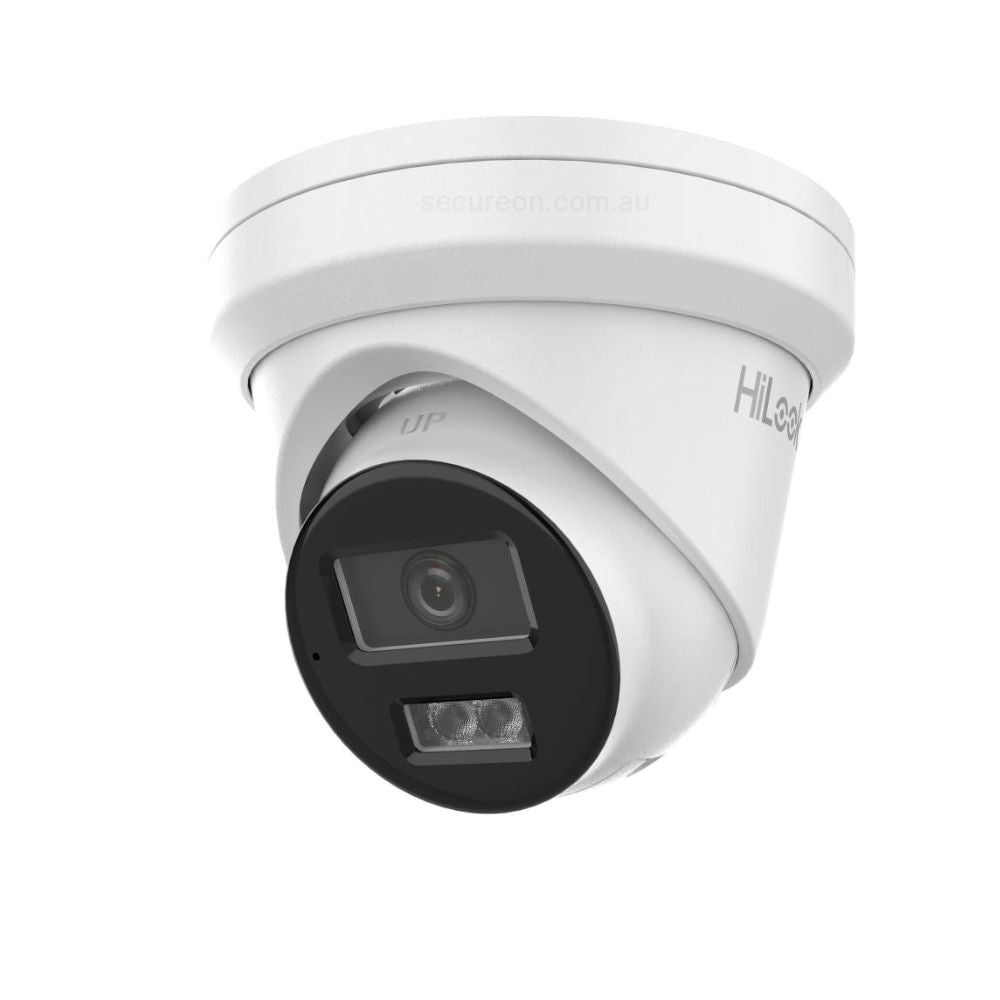

📹 6MP AI turret cameras — white or black, the everyday choice for eaves, driveways and back corners
🎥 8MP 4K turret cameras — more pixels on faces and plates where you need to identify, not just notice
🔴 Active deterrence cameras — red and blue strobe plus two-way audio, so an intruder is challenged the moment they step on the property
🏠 Indoor dome and outdoor bullet cameras — discreet cover inside, long reach along fence lines and driveways outside
🌈 24/7 full colour night vision cameras — colour detail after dark instead of grey infrared shapes
↔️ 180° panoramic and motorised PTZ cameras — one camera across a wide yard, forecourt or car park
💾 Surveillance-grade hard drive — 2TB to 8TB, built for continuous recording rather than desktop use
🔩 Brackets and junction boxes — tidy cable entry and a clean finish on brick, render or timber
🔋 Battery backup and a monitor — keep recording through a blackout and watch live vision on the wall
💽 One drive bay — up to 8TB (HDD not included). The recorder takes a single surveillance-grade drive of up to 8TB. Add one below, or fit your own.
🇦🇺 Authorised Australian Product — every HiLook 8 channel customisable CCTV kit ships fast from Australian warehouses, with local support behind it.
8 channels · 8 built-in PoE ports · 4K HDMI output · recording to 8MP · AI human and vehicle detection · one drive bay to 8TB · Authorised Australian Product
Most CCTV kits decide for you. Six cameras, one hard drive, one price — and half of it ends up in a cupboard because your place has four good camera positions, not six. The HiLook 8 channel customisable CCTV kit works the other way around. You start with the recorder, then add exactly the cameras and storage your property needs, and you pay for the system you actually specified.
If you arrived from one of our individual HiLook camera or recorder pages, this is where those parts become one order. The configurator below is the HiLook 8 channel customisable CCTV kit — tick your options and check out with a system specified for your building rather than an average one.
How the HiLook 8 Channel Customisable CCTV Kit Works — Three Decisions and You Are Done
The first decision is made for you: the HiLook NVR-108MH-C/8P(D) 8 channel 4K PoE recorder is included at the base price, so every HiLook 8 channel customisable CCTV kit starts from the same foundation. The second is cameras — how many, and what each must do. The third is storage and finishing touches: a surveillance drive, mounting hardware, backup power, a screen.
Nothing is locked in. Start with three cameras and add more as budget allows — eight channels and eight powered ports are already waiting, so expanding means running one more cable, not replacing the system you own.
The product image on this listing is a sample configuration. It shows one way a HiLook 8 channel customisable CCTV kit can be built, not the contents of the base purchase. Only the HiLook 8 channel 4K PoE NVR is included as standard. Cameras, the hard drive and every accessory are optional add-ons selected in the configurator, and the total price adjusts to whatever you choose.
Included as Standard in Every HiLook 8 Channel Customisable CCTV Kit — the 4K PoE NVR
The HiLook NVR-108MH-C/8P(D) anchors every HiLook 8 channel customisable CCTV kit. It takes eight IP cameras, records each at up to 8MP, and pushes 4K over HDMI so the detail you paid for reaches the screen. A second VGA output runs simultaneously — useful when the recorder sits in a comms cupboard and a screen sits at the counter.
Plug a HiLook camera into one of its eight built-in PoE ports and the recorder finds it, so a domestic install is measured in cable runs, not configuration hours.
It runs Motion Detection 2.0 system-wide and applies human and vehicle analysis to four channels — put those four on the approaches that matter and a person or a car is told apart from a branch or a possum. Remote viewing runs through the HiLookVision app, and H.265+ compression stretches a given drive across more days.
Choose Your Cameras — Match the Camera to the Job It Has to Do
This is where a HiLook 8 channel customisable CCTV kit earns its keep. A fixed bundle gives you eight identical cameras; real properties are not identical. A front door needs recognisable faces, a back fence needs reach, a driveway benefits from something that talks back. Choose per position and every camera pulls its weight.
| Camera type | What it is for |
|---|---|
| 6MP AI turret — white or black | The workhorse position — sharp detail at normal distances, human and vehicle detection, and a housing that disappears into white eaves or dark soffits. |
| 8MP 4K AI turret | Where you need to identify, not just notice — front entries, gates, tills, and anywhere footage may reach an insurer or the police. |
| Active deterrence turret — strobe and two-way audio | Stops trouble instead of filming it — strobe plus a speaker, so you challenge someone from your phone while they are still on the driveway. |
| Indoor dome | Low-profile cover for hallways, shopfloors and reception areas where a bullet camera looks heavy-handed. |
| Outdoor bullet | Reach along a fence line or long driveway, with a visible profile that tells people the property is watched. |
| 24/7 full colour night vision turret | Colour after dark — a jacket is navy, a car is red, instead of both being grey. |
| 180° panoramic dual-lens | One camera and one channel across a wide yard, forecourt or car park. |
| Motorised PTZ | Pan, tilt and zoom to follow activity across a large open site. |
Every camera offered in a HiLook 8 channel customisable CCTV kit is a HiLook IP camera built to pair with this recorder, so mixing types across one build is normal rather than clever. Full models, specifications and pricing sit in the configurator — or browse the HiLook camera range first.
Storage, Power and Screen — Finishing Your HiLook 8 Channel Customisable CCTV Kit
Recording needs a drive. The recorder has one drive bay and takes a single surveillance-grade disk of up to 8TB (HDD not included), with capacities from 2TB up offered as options in the HiLook 8 channel customisable CCTV kit. Surveillance drives are built to write continuously, day after day — the job a desktop drive is not designed for. Prefer to source your own? Browse the HiLook surveillance HDD range.
Two options are worth a moment. Battery backup keeps the recorder and cameras running through a blackout — the moment a property is least protected. A dedicated monitor turns live vision into something people glance at, not something you open after an incident. Brackets and junction boxes hide cable tails and finish each position properly.
8 Built-In PoE Ports — One Cable Per Camera, No Power Supply in the Roof
Each of the eight ports delivers power and data over one Cat6 run, with up to 75W across the system. That is what makes a HiLook 8 channel customisable CCTV kit realistic to install and easy to extend: no adaptor baking in a roof space, no separate injector to fail, no mains work at the camera end.
It keeps the system honest over time, too. Wired PoE stays on — nothing to recharge, no Wi-Fi dropping out when the router reboots, no camera quietly offline for a fortnight before anyone notices.
| Included recorder — HiLook NVR-108MH-C/8P(D) | Specification |
|---|---|
| IP camera inputs | 8 channels |
| PoE ports | 8 built-in, RJ-45 10/100 Mbps, up to 75W total |
| Recording resolution | Up to 8MP (8MP/6MP/5MP/4MP/3MP/1080p) |
| AI analysis | Human and vehicle analysis on 4 channels; Motion Detection 2.0 |
| Video output | HDMI to 4K (3840 × 2160 / 30Hz) + VGA to 1080p, simultaneous |
| Decoding capability | 1-ch @ 8MP, 3-ch @ 4MP or 6-ch @ 1080p, all 30fps |
| Bandwidth | 80 Mbps incoming, 80 Mbps outgoing |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Storage | 1 × SATA bay, up to 8TB — HDD not included, optional |
| Network | 1 × RJ-45 10/100 Mbps uplink; 32 remote connections; HiLookVision app |
| Third-party camera support | ONVIF not stated on the HiLook datasheet for this model — ask us before pairing non-HiLook cameras |
| USB | 2 × USB 2.0 |
| Power | 48 VDC, 1.88 A; ≤ 10W without HDD, PoE off |
| Dimensions and weight | 265 × 225 × 48 mm; ≤ 1 kg without HDD |
Who This Kit Is Built For
🏡 Homeowners with an unusual layout — corner blocks, long driveways, granny flats and side lanes rarely suit a boxed six-camera bundle. A HiLook 8 channel customisable CCTV kit lets you buy four cameras for the four positions that matter and put the saving toward better cameras on the front door and the gate.
🏢 Small business, retail and hospitality — different rooms need different eyes, which is exactly what a HiLook 8 channel customisable CCTV kit allows. Discreet domes over the floor, an 8MP camera on the till, an active deterrence camera on the rear delivery door. One recorder, one app, one bill, and footage that is useful when you review an incident or settle a dispute.
🏗 Builders, trades and site managers — sites change shape every few weeks, so a HiLook 8 channel customisable CCTV kit suits them better than a fixed bundle. Start with the recorder and two cameras on the compound and material store, then move or add as the build progresses. Nothing is wasted.
🔧 Electricians and installers — quote a HiLook 8 channel customisable CCTV kit per job instead of working around a fixed bundle. One order, one delivery, cameras pre-matched to the recorder, and eight PoE ports that keep it to a straight structured-cabling install with no power provisioning at the camera end.
Frequently Asked Questions — HiLook 8 Channel Customisable CCTV Kit
Q: What exactly do I receive if I buy this at the base price?
You receive the HiLook NVR-108MH-C/8P(D) 8 channel 4K PoE recorder on its own. The photograph is a sample configuration showing what a HiLook 8 channel customisable CCTV kit can be built into — cameras, the hard drive and every accessory in it are optional. Whatever you tick in the configurator is added to the price shown, so the total you see at checkout is the system you will actually receive.
Q: Do I have to fill all eight channels, and can I add cameras later?
No, and yes. Buy three cameras today and the other five channels sit ready. Adding one later to a HiLook 8 channel customisable CCTV kit is one cable run and one plug — nothing to reconfigure, no need to replace the recorder. Every camera offered on this page is a HiLook IP camera matched to this unit, so anything you add from the configurator will pair with it. If you want to connect a non-HiLook camera, ask us first: ONVIF support is not stated on the HiLook datasheet for this model, so we would rather check than have you guess.
Q: What size hard drive should I choose?
The recorder in a HiLook 8 channel customisable CCTV kit has one bay and takes a single drive of up to 8TB. More cameras and higher resolution mean a bigger drive for the same number of days, while H.265+ compression stretches whatever capacity you pick considerably further. If you tell us how many cameras you are running and how far back you want to be able to look, we will tell you which capacity fits — it costs nothing to ask and it beats discovering the answer three weeks after the install.
Finish your HiLook 8 channel customisable CCTV kit properly. Run pre-terminated Cat6 CCTV cables — one per camera, carrying power and data together from the recorder’s PoE ports. Add brackets and junction boxes to hide cable tails and finish each position properly. Prefer a ready-made loadout instead of building your own? Browse the HiLook 8 channel CCTV kit range. And to cover the doors, windows and rooms your cameras cannot see, pair the system with a Hikvision AX Pro wireless alarm system.
3-Year manufacturer warranty on NVR and cameras — Authorised Australian Product. See warranty T&C.
The HiLook 8 channel customisable CCTV kit is part of the HiLook CCTV range at Comms Direct — supplied as Authorised Australian Product, covered by manufacturer warranty. Ships fast from Australian warehouses. Not sure which cameras suit your property? Send us your addresses and camera positions and we will spec the build with you.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 40 × 30 × 30 cm |
