TP Link InSight S485PI 8MP 4K Panoramic Turret Network Camera – 180° Ultra-Wide, AI Human & Vehicle Detection, Active Deterrence

One Camera. Full 180° Coverage. No Blind Spots.

The TP Link InSight S485PI is a professional-grade 8MP 4K panoramic turret camera designed to replace multiple standard cameras with a single ultra-wide 180° field of view. With AI human & vehicle classification, active deterrence lights and audio, and IP67 / IK10 protection, it delivers powerful perimeter coverage for commercial, retail, strata, and high-risk residential environments.

Key Features:

• True 180° Panoramic Coverage – monitor wide areas with one camera

• 8MP 4K Resolution (3840 × 2160) – sharp detail for identification

• AI Human & Vehicle Classification – fewer false alerts

• Active Deterrence – red/blue warning lights + audible alerts

• Infrared Night Vision (20m) – 24/7 visibility

• Two-Way Audio – built-in microphone & speaker

• PoE or 12V DC Power – flexible installation

• IP67 Weatherproof & IK10 Vandal-Resistant – built for harsh environments

Ideal Applications:

• Car parks & driveways

• Building perimeters

• Warehouses & loading docks

• Retail shopfronts

• Schools & campuses

• Strata & apartment complexes

• Sites where multiple cameras would normally be required

How This Camera Solves Real Problems

Replace Multiple Cameras with One

The 180° ultra-wide lens (1.65mm) eliminates blind spots, reducing hardware, cabling, and installation costs while simplifying system management.

Stop False Alerts

AI-powered human and vehicle detection filters out irrelevant motion such as shadows, animals, and rain—saving time and reducing alarm fatigue.

Actively Deter Intruders

Integrated red/blue warning lights and speaker allow the camera to actively respond to events instead of passively recording them.

Technical Highlights:

Sensor: 1/2.7″ Progressive Scan CMOS

• Lens: Fixed 1.65mm, F2.0

• Field of View:

  • Horizontal: 180°

  • Vertical: 86°

• Night Vision: IR LEDs ×4, up to 20m

• Compression: H.265+ / H.265 / H.264+ / H.264

• WDR: 120 dB (excellent for challenging lighting)

• Audio: Two-way (built-in mic & speaker)

• Analytics: Line crossing, intrusion, loitering, region entry/exit, object removal, abnormal sound detection

• Storage: MicroSD up to 512GB

• Networking: ONVIF Profile S/T/G, IPv4/IPv6

• Power: PoE (802.3at) or 12V DC

• Protection: IP67 weatherproof, IK10 vandal-resistant

• Operating Temp: -30°C to +60°C

Compatibility & Integration:

• Works seamlessly with VIGI NVRs, VIGI VMS, Web UI, and mobile apps

• ONVIF compliant for integration with third-party VMS platforms

• Supports cloud management and remote monitoring

Developed as part of the professional surveillance ecosystem by VIGI.

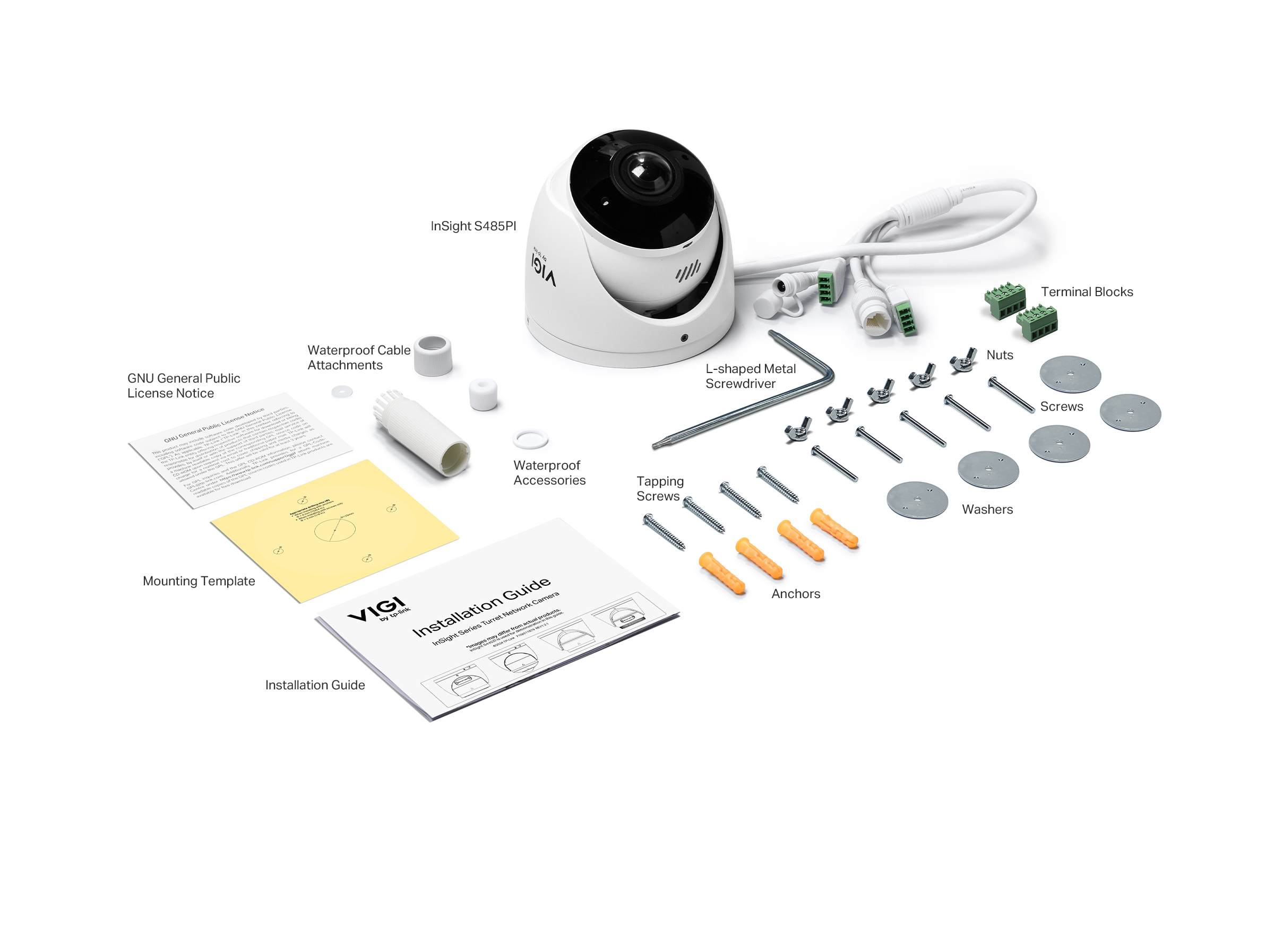

What’s in the Box:

• InSight S485PI Network Camera

• Waterproof cable attachments

• Mounting accessories

• Quick start guide

(MicroSD card not included)

Who This Camera Is For:

Best suited for:
✔ Commercial & industrial sites
✔ Professional installers & integrators
✔ Users seeking wide-area coverage with fewer cameras

Not ideal for:
✘ Budget-only installations
✘ Indoor-only environments with narrow coverage needs

Why This Matters

If you need maximum coverage, fewer cameras, smarter alerts, and active deterrence, the InSight S485PI delivers a measurable upgrade over standard fixed-lens cameras. It reduces infrastructure complexity while improving detection accuracy and site security—making it a strong choice for serious surveillance deployments.
