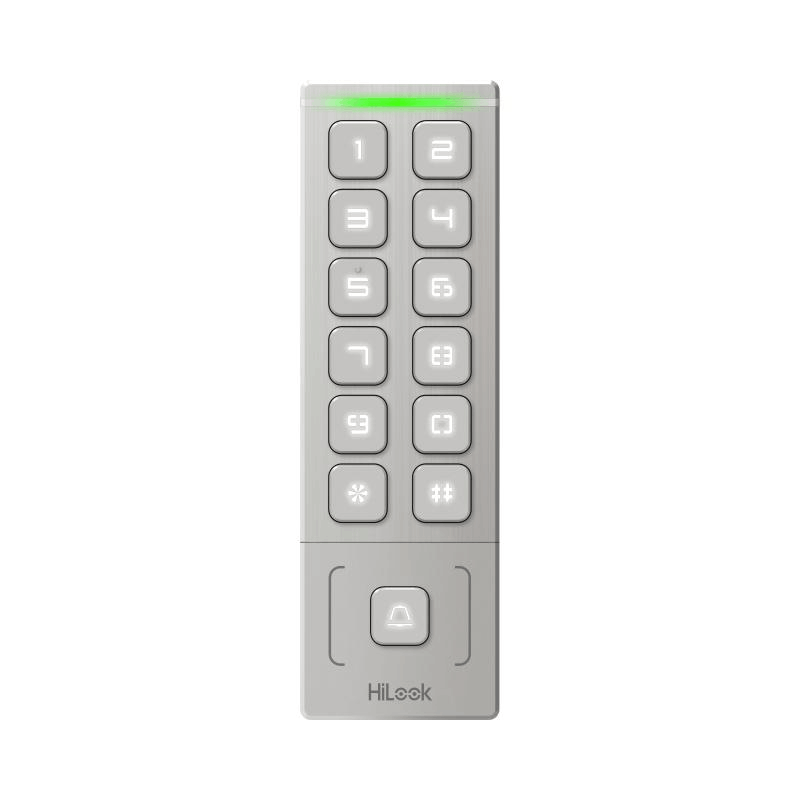

HiLook HA-AC-S1 Value Card Terminal – IP65 Outdoor Access Control with M1 Card & PIN

The HiLook HA-AC-S1 Value Card Terminal is a compact and durable access control device designed for reliable entry management in both residential and commercial applications. Built with a slim metal body and IP65 weatherproof protection, it’s suitable for outdoor use and provides consistent performance in harsh conditions.

With support for up to 1000 users and 1000 M1 cards, this terminal is ideal for small to medium sites requiring secure but easy-to-manage access solutions.

Key Features:

• User & Card Capacity – Supports up to 1000 users and 1000 M1 cards.

• Flexible Authentication – Card and PIN authentication options for secure entry.

• Rugged Outdoor Design – IP65 rating ensures reliable operation in rain, dust, and extreme temperatures (-40 °C to 65 °C).

• Integration Ready – Interfaces for lock control, door contact, exit button, alarm output, and Wiegand 26/34.

• Fast Card Reading – 3 cm range with 1-second recognition for quick access.

• Slim & Stylish Build – Metal housing, compact 151 × 48 × 21.5 mm size.

• Efficient Power – Runs on 12 VDC, 1 A supply with low power consumption.

Specifications:

• Processor: GD32E230K8

• Memory: ROM 64K, RAM 8K

• Audio: Power output 6 W

• Authentication: M1 card, PIN

• Reading Distance: 3 cm

• Inputs/Outputs: Lock control (1), exit button (1), door contact input (1), alarm output (1)

• Interface: Wiegand 26/34 output

• Environment: -40 °C to 65 °C, 0–90% humidity (non-condensing)

• Protection: IP65

• Dimensions: 151 × 48 × 21.5 mm

• Weight: 220 g net, 352 g gross

Applications:

The HA-AC-S1 makes access control simple and reliable. Its ability to manage 1000 users means it fits perfectly in small offices, retail, or residential complexes. With outdoor IP65 protection and multiple integration options, it ensures secure access without the complexity of high-end systems.

Upgrade to the HiLook HA-AC-S1 today for affordable, reliable, and flexible access control that protects your premises and simplifies entry management.

Key Features:

• Crystal-Clear Video – 1280×720 HD TVI resolution with a wide 117° horizontal viewing angle.

• 7-Inch Touchscreen – High-resolution (1024×600) capacitive display with 160° horizontal viewing angle for sharp, vivid visuals.

• Mobile App Control – Integrated with the Hik-Connect app for remote answering and door release via smartphone or tablet.

• Weather & Impact Resistant – IP65 weatherproof and IK08 vandal-resistant door station, suitable for Australian outdoor conditions.

• Plug & Play – Simplified installation with 4-wire interface for quick setup.

• Clear Two-Way Audio – Built-in omnidirectional microphone and speaker with noise suppression and echo cancellation.

• Low Power Consumption – Efficient 12V DC operation with ≤4W (door station) and ≤5W (indoor station).

Technical Specifications:

Door Station

• Video: 1280×720@60fps HD TVI

• Field of View: H: 117°, V: 70°, D: 141°

• Illumination: IR supplement light, up to 3m

• Audio: Built-in mic & loudspeaker

• Lock Control: 1 relay, max 30V 1A

• Build: Aluminium alloy & plastic

• Protection: IP65, IK08

• Dimensions: 55×145×24mm

• Weight: 200g

Indoor Station

• Display: 7″ TFT touchscreen, 1024×600 resolution

• OS: Embedded Linux

• Audio: G.711U/A, noise suppression, echo cancellation

• Storage: TF card support up to 128GB

• Alarm Inputs: 2

• Wi-Fi: 802.11 b/g/n

• Dimensions: 175×113.5×18.1mm

• Weight: 260g

Security and accessibility go hand in hand. With robust construction, excellent audio-visual clarity, and app integration, this intercom kit is perfect for Australian homeowners seeking both style and practicality. Its weatherproof and vandal-resistant design ensures reliable operation for years, while the plug-and-play setup saves time and installation costs.
