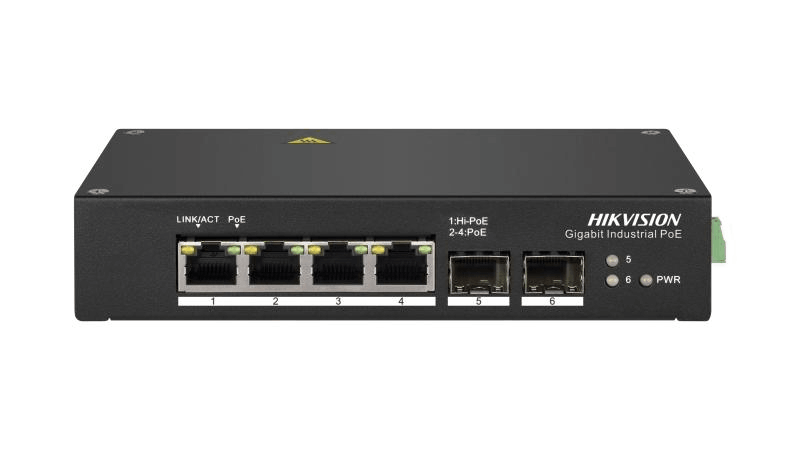

The Hikvision DS-3T0506HP Industrial Hi-PoE Switch is a high-performance unmanaged switch engineered for reliable operation in harsh environments. With 4 Gigabit PoE ports and 2 Gigabit SFP fibre ports, it delivers flexible connectivity for IP cameras, wireless access points, and industrial automation devices.

Supporting IEEE 802.3 af/at/bt standards, this switch provides a 90W Hi-PoE output on Port 1 and up to 30W per port on others, with a total PoE power budget of 110W. Intelligent PD detection ensures safe and efficient power distribution, backed by system-level overload protection.

Designed for industrial conditions, the DS-3T0506HP features a rugged aluminium alloy housing, fanless design, and operating temperature range of -40°C to 75°C. With 6kV surge protection and DIN rail mounting support, it is ideal for factories, outdoor enclosures, and transportation networks.

Whether powering high-demand PTZ cameras or ensuring long-range fibre connectivity up to 300m, the DS-3T0506HP offers dependable networking for critical infrastructure.

Key Features:

• 4 × Gigabit PoE Ports + 2 × Gigabit SFP Fibre Ports

• Up to 90W Hi-PoE on Port 1, 30W per additional port

• IEEE 802.3af/at/bt compliant for wide device compatibility

• 12Gbps switching capacity and 8.93 Mpps forwarding rate

• Rugged aluminium alloy housing with fanless design

• DIN rail or desktop mounting for flexible installation

• Wide temperature tolerance (-40°C to 75°C) for harsh environments

• 6kV surge protection for industrial-grade reliability

• Compact design – 158 × 101.2 × 31.6 mm, only 0.38kg net weight

Technical Specifications:

• Model: DS-3T0506HP

• Ports: 4 × Gigabit PoE RJ45, 2 × Gigabit SFP Fibre

• PoE Power: 90W (Port 1), 30W (Ports 2–4), 110W budget

• Switching Capacity: 12 Gbps

• Forwarding Rate: 8.93 Mpps

• Internal Cache: 1.0 Mbit

• MAC Address Table: 2K

• Power Supply: 48–57 VDC, 2.5 A

• Max Power Consumption: 120W (10W idle)

• Operating Temperature: -40°C to 75°C

• Surge Protection: 6kV

• Certifications: CE, RCM (AS/NZS), IC, CB, RoHS, WEEE, REACH

Applications:

The DS-3T0506HP is ideal for industrial Ethernet networks, surveillance systems, and automation control. It allows operators to power demanding devices such as PTZ cameras, outdoor access points, and industrial controllers over long distances, without the need for separate power cabling. Its rugged build and wide temperature tolerance make it suitable for factories, mines, transportation hubs, and smart city infrastructure where reliability is critical.

Choose the Hikvision DS-3T0506HP Industrial Hi-PoE Switch for a reliable, secure, and efficient PoE solution that is purpose-built for harsh environments. Designed with safety, performance, and long-term durability in mind, it delivers the power and connectivity your network demands.
