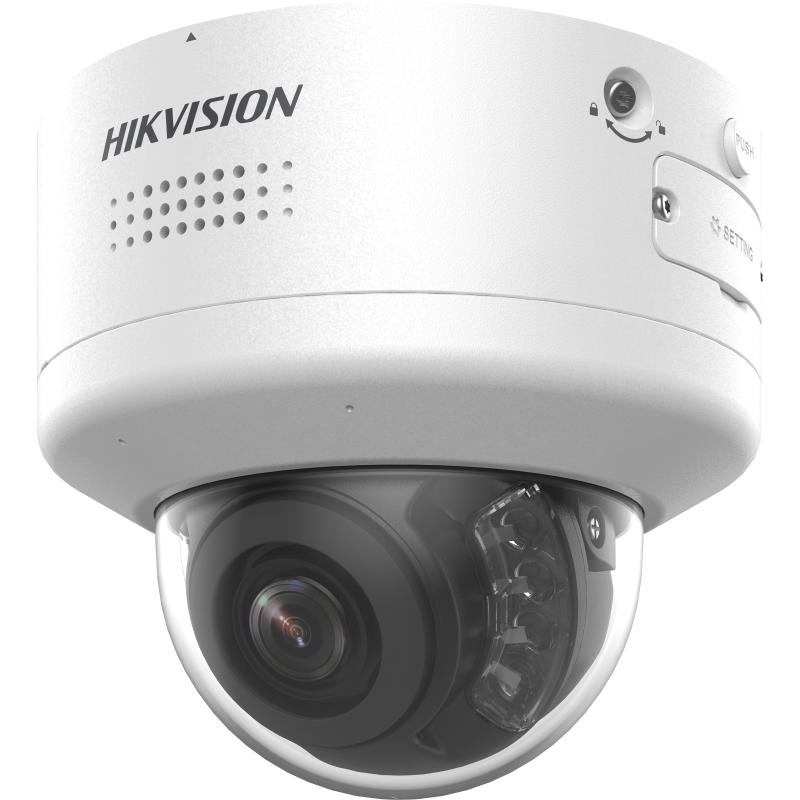

Hikvision iDS-2CD7586G2-XZHS(Y) 8MP Motorised Varifocal AI Dome Camera 2.8–12mm — DeepinView, People Counting, PPE Detection, IK10 Anti-Corrosion

Within the view the dome was installed to cover, the framing can change with the job: zoom in for detail, widen back out, refocus. The Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome lets the integrator make those changes from the software, because its 2.8–12 mm lens is motorised, running from a 112.3° wide view down to 41.2°.

Inside the Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome sits a 1/1.8″ sensor recording 8MP at 3840 × 2160, DarkFighter 2.0 low-light imaging, DeepinView deep learning analytics and a sealed aluminium body. For the buyer that adds up to one 8MP varifocal dome camera that frames the job tightly, keeps colour in very low light and turns footage into counts and alarms the site manager can act on.

Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome — Motorised Zoom Set Now, Changed Later

The motorised zoom lens moves between 2.8 and 12 mm, with auto, semi-auto or manual focus, so the Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome can be reframed from the web browser, iVMS-4200 or HikCentral as the job changes. PTRZ angle adjustment covers pan 0° to 355°, tilt 0° to 85° and rotate 0° to 355°, which Hikvision describes as PTRZ capability for efficient installation and configuration. The lens also has P-iris control, F1.47 to F2.53.

Night Vision on the Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome — Colour in Low Light, Up to 40 m After Dark

DarkFighter 2.0 and the 1/1.8″ sensor give the Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome colour down to 0.0005 lux, so a dim yard or loading area still shows in colour before supplement light is needed. Once it is dark, the smart supplement light uses 850 nm IR or white light, reaching up to 40 m on this lens, with white light for colour on detection. 140 dB WDR balances bright and shaded areas in the same frame, and electronic image stabilisation (EIS) steadies the picture.

People Counting, Queues and Heat Maps — DeepinView Analytics as Hikvision Lists Them

DeepinView analytics run on the Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome itself, in Hikvision’s own terms. Perimeter protection covers line crossing, intrusion, region entrance and region exiting, each of which can fire on human or vehicle targets. People counting, regional people counting, queue management and heat maps give a site manager figures to report from; PPE detection checks for hard hats and reflective clothing; on/off duty detection and activity analysis (smoking, phone calls) are on the list too, as are face capture and face comparison with up to 10 libraries and 150,000 faces. Two smart applications run at the same time, and AcuSeek search works with AcuSeek NVRs or servers. An event can trigger an alarm output, recording, an email or an audible warning.

Anti-Vandal Dome for Exposed and Corrosive Sites — IK10, IP67, NEMA 4X and PoE+

The Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome is an anti-vandal dome in an aluminium alloy body rated IK10 for impact and IP67 for dust and water. The -Y model adds NEMA 4X anti-corrosion protection, which Hikvision’s sheet rates as moderate protection for coastal areas about 2 km from the coast and for acid rain. A built-in heater and a −40 °C to 65 °C rating cover frost and heat. As a PoE camera it runs on PoE+ (802.3at, max 24 W) or 12 VDC, and it adds two microphones, a speaker, line in and out, two alarm inputs and two outputs, and RS-485.

Who the Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome Suits

🏢 Shops, offices and hospitality venues — people counting, regional people counting, queue management and heat maps give the manager footfall, queue and busy-area figures to report from, and the motorised lens tightens onto a counter or widens over a floor from the software.

🏭 Warehouses, depots and construction sites — PPE detection checks for hard hats and reflective clothing, line crossing and intrusion rules trigger on people or vehicles after hours, and the Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome, rated IK10 and NEMA 4X, is an anti-vandal build made for knocks, weather and corrosion.

🔧 Integrators and security installers — zoom and focus set from the software, ONVIF Profile S, G, T and M, ISAPI and SDK for third-party platforms, and the HEOP 2.0 open platform: 5 TOPS of computing power, OpendevSDK and up to three AI models loaded, one running at a time.

Specifications for the Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome, taken from Hikvision’s datasheet:

Hikvision iDS-2CD7586G2-XZHS(Y) vs Hikvision DS-2CD2386G2H-IU — Software Zoom and Site Analytics, or a Fixed Wide View

Choose the Hikvision iDS-2CD7586G2-XZHS(Y) 8MP DeepinView varifocal dome when the site needs framing you can change from the software, on-board people counting, queue and PPE analytics, light to 40 m and an IK10, NEMA 4X housing. Choose the Hikvision DS-2CD2386G2H-IU for a fixed 2.8 mm wide view with AcuSense human and vehicle classification on a standard PoE port, where those extras are not part of the brief.

Frequently Asked Questions — Hikvision iDS-2CD7586G2-XZHS(Y)

Our iDS-2CD7586G2-XZHS(Y) is part of the Hikvision DeepinView range: Authorised Australian Product, covered under the manufacturer’s warranty and dispatched from our Melbourne and Sydney warehouses. Which business site is it going to work on next?
