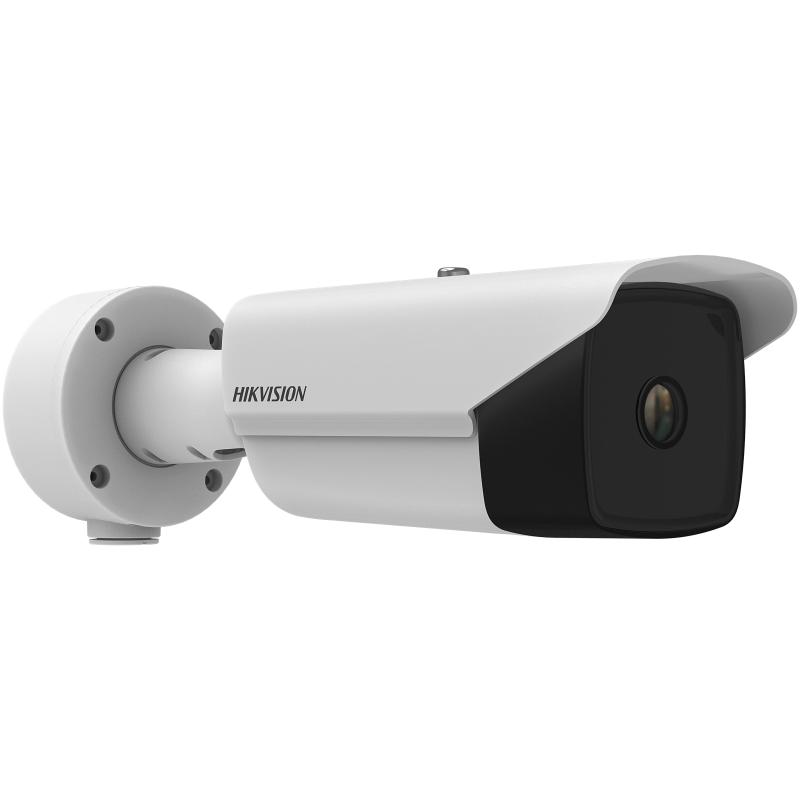

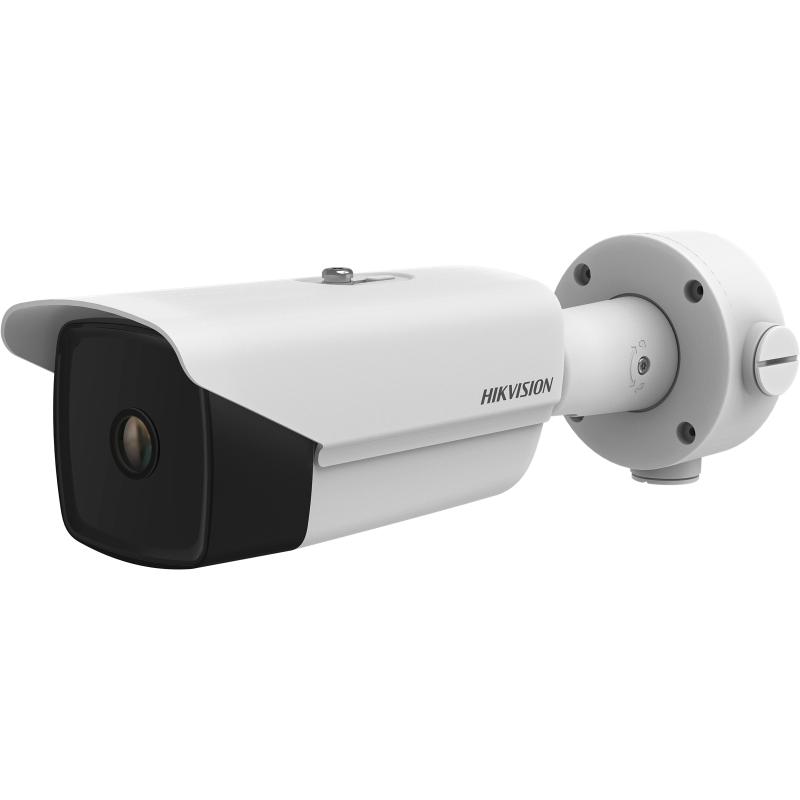

Hikvision DS-2TD2137T-4/QY Thermal Network Bullet Camera 4.4mm — Fire Detection, Temperature Monitoring & Anti-Corrosion

The Hikvision DS-2TD2137T-4/QY thermal camera protects sites where waiting for a flame is already too late. Instead of light, it reads heat — so it sees a connection cooking inside a switchboard, a hotspot smouldering in a waste pile, or a person moving across a yard in pitch dark, and it raises the alarm while the problem is still small. For warehouses, substations, recycling sites and factory floors, that is the difference between an early callout and an overnight fire.

Hikvision DS-2TD2137T-4/QY Thermal Camera — Catch Fire and Overheating Before They Spread

Most fires announce themselves as heat long before there is anything to see. The Hikvision DS-2TD2137T-4/QY thermal camera watches for that heat signature continuously and triggers an alarm the moment a temperature crosses the threshold you set, linking to a relay, siren, FTP upload or email so the right person knows in seconds. Its dynamic fire detection and dedicated smoking-detection algorithm add a second layer for lit cigarettes and early combustion in no-smoking and fire-risk zones.

Because it measures the scene rather than reacting to flame or particles, it works where smoke and beam detectors are slow or unreliable — open yards, high-bay racking, dusty plants and outdoor stockpiles. The high-quality VOx detector at its core is backed by a 10-year guarantee, so it keeps doing this job for the long haul.

Temperature Monitoring to 550°C — Spot Overheating Equipment and Hotspots Early

Overheating is the early warning almost every electrical and mechanical failure gives you. The Hikvision DS-2TD2137T-4/QY thermal camera measures from −20°C right up to 550°C and lets you place up to 21 measurement rules — 10 points, 10 areas and a line — across the exact spots that matter: switchboard terminals, motor bearings, battery banks, kiln doors or conveyor drives.

When a reading drifts past your set limit, the camera alarms automatically, so a hot joint or a failing cell gets flagged on the dashboard instead of being found after it fails. Accuracy is within ±2°C (or ±2%), built for industrial fire-prevention and equipment condition-monitoring.

Fire & Smoking Detection in Total Darkness — Plus Human and Vehicle Alerts

Thermal imaging needs no light whatsoever, and it reads straight through smoke, haze, dust and glare that blind an ordinary camera. The Hikvision DS-2TD2137T-4/QY thermal camera gives you usable detection in absolute darkness out to hundreds of metres, with on-camera video analytics that classify people and vehicles and run line-crossing, intrusion and region rules — so after-hours perimeter alerts flag a real intruder, not a possum or a swaying branch.

It images heat rather than visible detail, so it is the early-warning and detection layer of a site rather than the camera that reads a face or a number plate. Pair it with an optical Hikvision camera on the same recorder where you need that identification, and the two cover each other.

Anti-Corrosion IP67 + IK10 Housing — Built for Harsh Industrial Sites

The Hikvision DS-2TD2137T-4/QY thermal camera is built for the places that destroy ordinary cameras. Its anti-corrosion metal housing is sealed to IP67, rated IK10 against impact and protected to TVS 4000V against surges and lightning, and it runs from −40°C to 65°C — coastal salt air, chemical plants, waste sites and exposed gantries included.

A single Cat6 run powers and connects it over standard 802.3af PoE (or 12 VDC / 24 VAC), and it records to a Hikvision NVR, to an onboard microSD card or to NAS with ANR so nothing is lost if the network drops. Built-in audio and 2-in/2-out alarm I/O let it drive sirens, beacons and linked site actions the instant it detects an event.

Full specifications for the Hikvision DS-2TD2137T-4/QY thermal camera:

How the Hikvision DS-2TD2137T-4/QY Thermal Camera Compares to a Standard Optical Camera

Where the Hikvision DS-2TD2137T-4/QY Thermal Camera Earns Its Place Across Australia

🏭 Warehouses & logistics — The Hikvision DS-2TD2137T-4/QY thermal camera watches high-bay racking, battery-charging bays and lithium storage for the heat build-up that precedes a fire, raising the alarm while it is still a hotspot rather than a blaze that closes the site.

♻️ Waste, recycling & construction — Stockpiles and waste bunkers self-heat and ignite from within where no camera can see smoke yet; the thermal view flags the hotspot deep in the pile and buys crews time to intervene.

⚡ Substations & switchrooms — The Hikvision DS-2TD2137T-4/QY thermal camera keeps continuous watch on connections, busbars and transformers, with point and area rules that alarm on an overheating joint long before it arcs or trips supply.

🏭 Manufacturing & process lines — The Hikvision DS-2TD2137T-4/QY thermal camera monitors motors, bearings, kilns and conveyors for thermal drift that signals a failing part, turning unplanned breakdowns into scheduled maintenance.

⚡ Electricians & security installers — One Cat6 run, standard PoE and a straight feed into a Hikvision NVR keep installs fast, while the anti-corrosion IK10 build holds up in the field. Supplied as Authorised Australian Product and covered by manufacturer warranty, with a 10-year detector guarantee behind it.

The Hikvision DS-2TD2137T-4/QY thermal camera is part of the Hikvision Thermal Cameras range at Comms Direct — supplied as Authorised Australian Product, covered by manufacturer warranty. Ships fast from Australian warehouses. For multi-camera project deployments or $10k+ project supply, contact our Project Supply Desk for project pricing and specification support.
