AXIS TQ5001-E Wall & Pole Mount for PTZ & Multi-Sensor Cameras – 02411-001
AXIS TQ5001-E Wall & Pole Mount for PTZ & Multi-Sensor Cameras – 02411-001 - Image 2
AXIS TQ5001-E Wall & Pole Mount for PTZ & Multi-Sensor Cameras – 02411-001 - Image 3
AXIS TQ5001-E Wall & Pole Mount for PTZ & Multi-Sensor Cameras – 02411-001 - Image 4

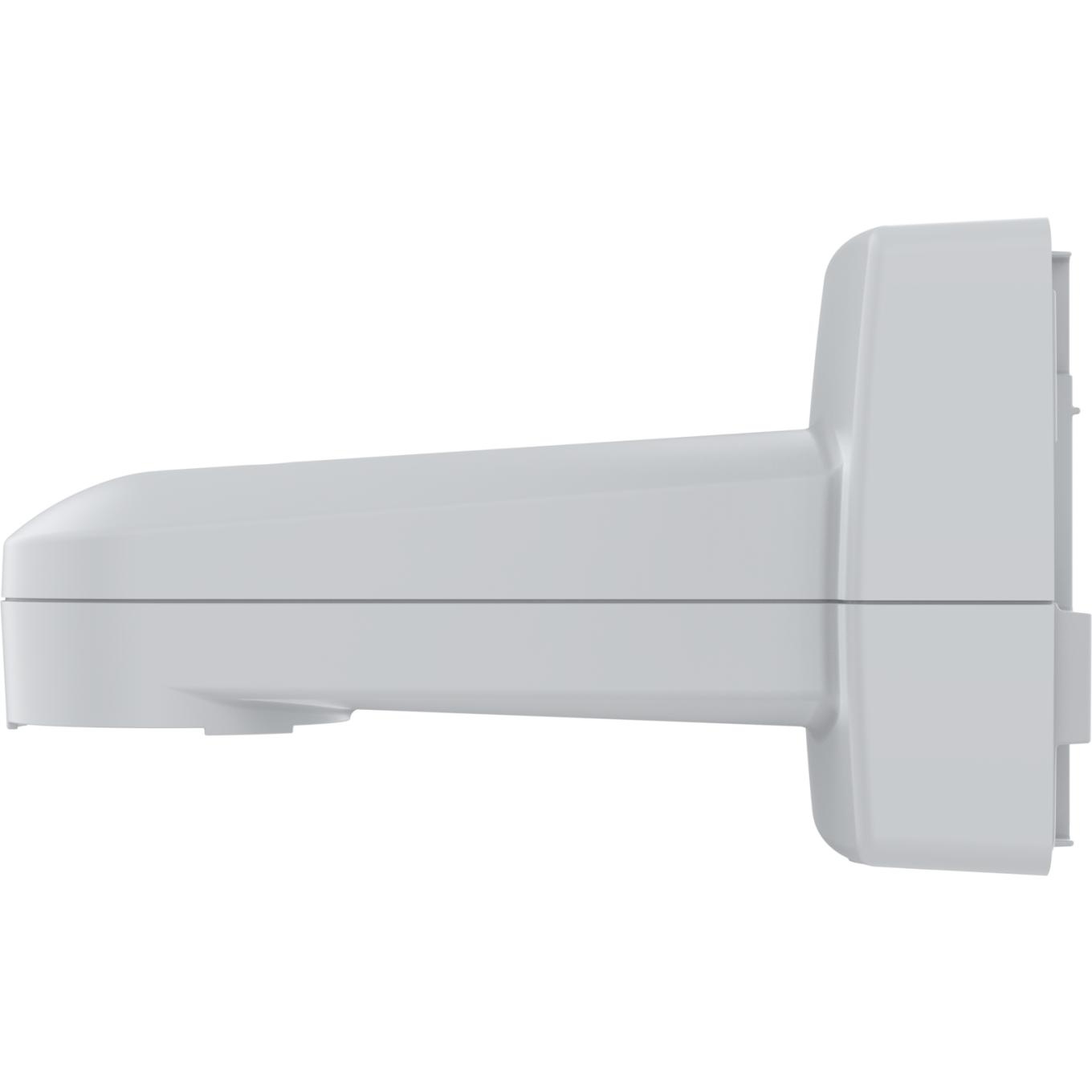

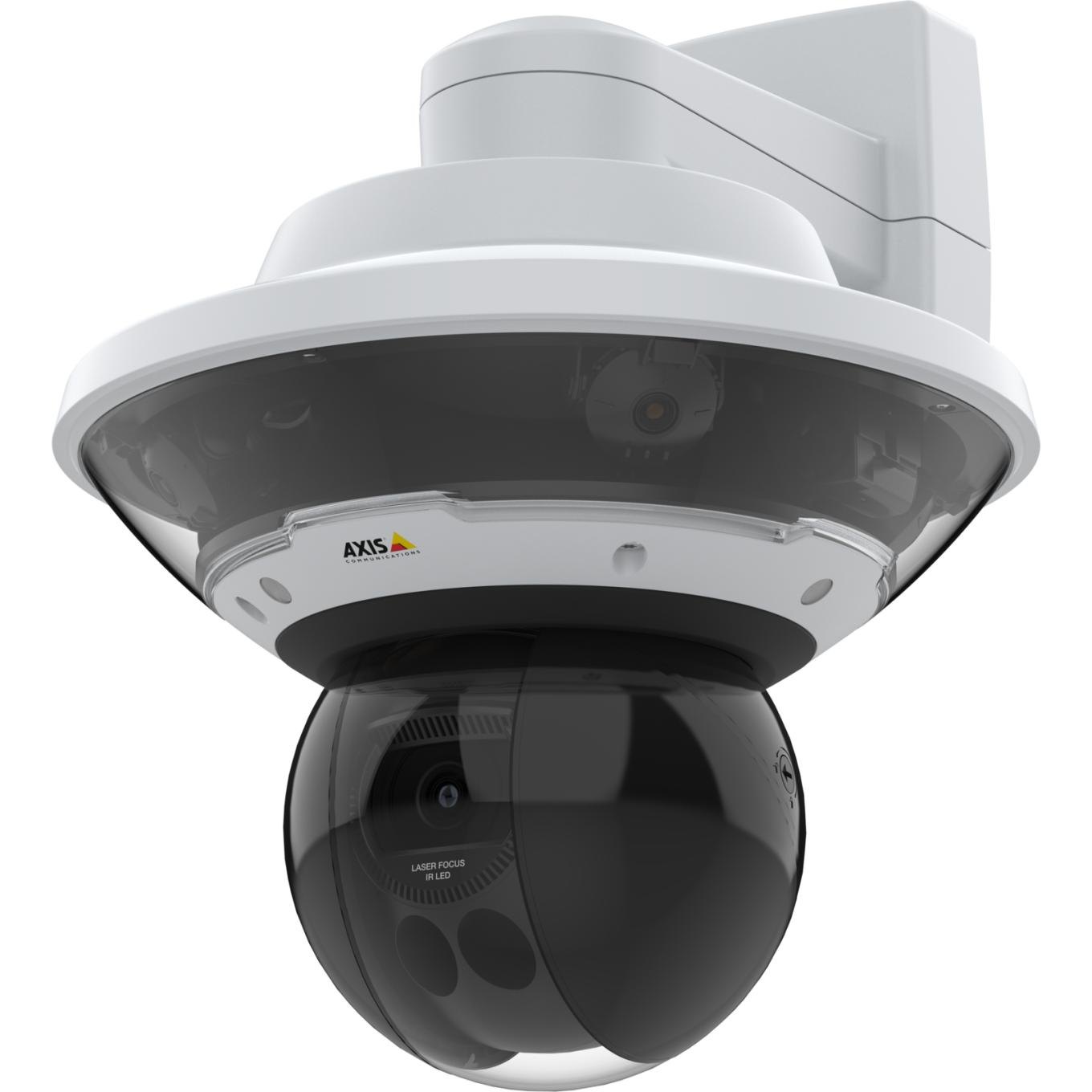

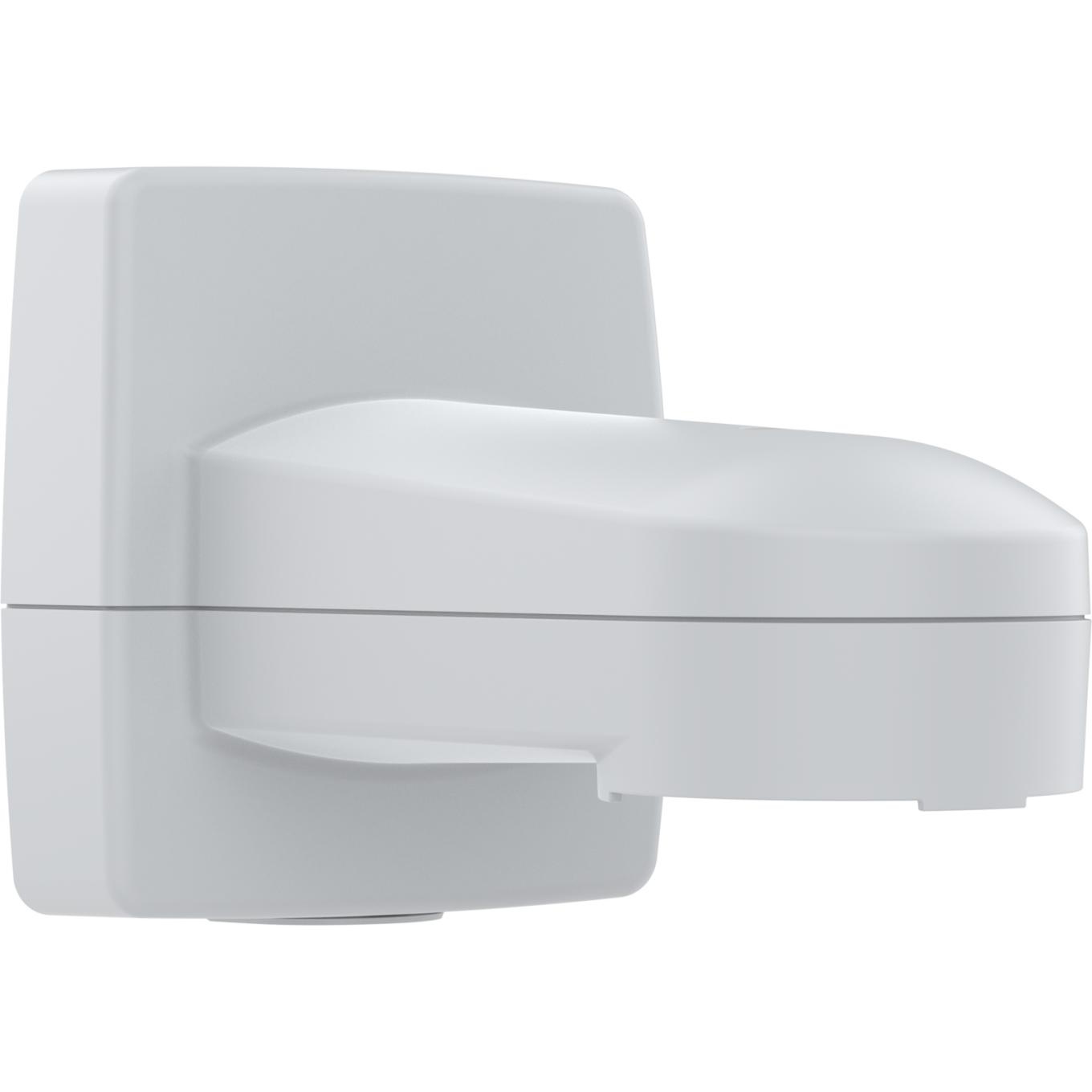

AXIS TQ5001-E Wall & Pole Mount for PTZ & Multi-Sensor Cameras – 02411-001

Rugged AXIS TQ5001-E mount for PTZ & multi-sensor cameras. IK10, IP66, NEMA 4X rated. Ideal for wall or pole installs. 5-year warranty.

The AXIS TQ5001-E is a robust wall and pole mount designed for Axis PTZ and multi-sensor cameras. With an IK10, IP66, and NEMA 4X rating, it’s built to handle extreme conditions. It includes an integrated RJ45 connector for weather-sealed Ethernet connection, and supports flexible installation options for walls, poles, or corners using optional accessories.

Key Features:

  • Dual-use mount – easily switches between wall and pole configurations

  • Rugged design – IK10-rated impact resistance and IP66/NEMA 4X weather protection

  • Wide compatibility – supports AXIS P55, P56, Q37, Q60, and Q61 series cameras

  • Flexible cabling – built-in IP66 RJ45 connector and IDC terminal options

  • Extreme temperature performance – operates from -50 °C to +65 °C

  • High load capacity – supports up to 40 kg

  • Optional accessories – compatible with AXIS steel straps and corner brackets

  • 5-year warranty – backed by Axis reliability and sustainability commitment

    Axis TQ5001-E Wall-and-Pole Mount for PTZ Cameras. Designed for Axis PTZ cameras,

    AXIS TQ5001-E Wall-and

    -Pole Mount offers flexible installation and versatile connection with RJ45 or IDC connectors.

    – Robust, IK10-rated – For indoor and outdoor use

    –Versatile connection with IDC connector

    – Built-in IP66-rated RJ45 connector

    – 5-year warranty

02411-001 Datasheet: 240524054249-datasheet-axis-tq5001-e-wall-and-pole-mount-en-US-419559

SKU: 02411-001 Categories: , , , Tags:

Reliable Mounting for Harsh Environments

The AXIS TQ5001-E Wall and Pole Mount delivers robust, professional-grade support for PTZ and multi-sensor cameras in both indoor and outdoor environments. Constructed from impact-resistant aluminium and sealed to IP66 and NEMA 4X standards, it’s engineered to withstand dust, rain, vibration, and corrosion — ensuring long-term reliability in demanding installations such as transport hubs, public areas, and perimeter surveillance.

Smart Design for Fast Installation

The integrated IP66-rated RJ45 Ethernet connector simplifies cabling while maintaining full weather protection. Installers can choose between standard RJ45 and IDC connection options to suit their preferred workflow. Its reversible mounting bracket design enables seamless transition between wall and pole setups, providing unmatched versatility on site.

Proven Axis Compatibility

Optimised for AXIS P55, P56, Q37, Q60, and Q61 Series cameras, this mount ensures secure alignment and maximum performance. Combined with optional AXIS Steel Straps TX30 or a T91A64 corner bracket, the TQ5001-E adapts effortlessly to diverse installation requirements.

Built to Last

Certified to IK10 impact resistance and MIL-STD-810G 509.5 corrosion testing, the TQ5001-E offers reliability in extreme temperatures ranging from -50 °C to +65 °C. Its lightweight but strong construction supports cameras and housings up to 40 kg, making it suitable for heavy PTZ or multi-sensor units.

Specifications

SpecificationDetails
ModelAXIS TQ5001-E
Product TypeWall & Pole Mount
MaterialAluminium, white (NCS S 1002-B)
Environmental RatingIP66, NEMA 4X, IK10
Operating Temperature-50 °C to +65 °C
Weight Capacity40 kg
Supported CamerasAXIS P55, P56, Q37, Q60, Q61 Series
ConnectorsIP66 RJ45 (male), RJ45 (female), IDC
Mounting OptionsWall, Pole, Corner (with accessory)
CertificationsUL/cUL, CE, RCM, FCC Part 15 Class A
Warranty5 Years

How Can This Product Help?

For installers and integrators, the AXIS TQ5001-E provides a rugged, adaptable, and time-saving mounting solution that reduces fieldwork complexity. It’s the ideal choice when long-term durability, environmental protection, and fast deployment are critical — especially for security infrastructure projects in public, transport, or industrial environments.

Why This Matters

Choosing the right mount ensures both camera longevity and image stability. The TQ5001-E’s professional-grade construction protects against vibration, corrosion, and weather damage — helping safeguard investment in high-value PTZ and multi-sensor cameras, and reducing costly maintenance downtime.

Additional information

Weight7 kg
Dimensions20 × 15 × 15 cm
