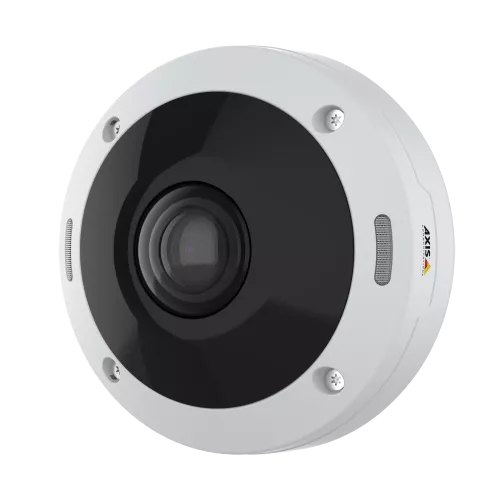

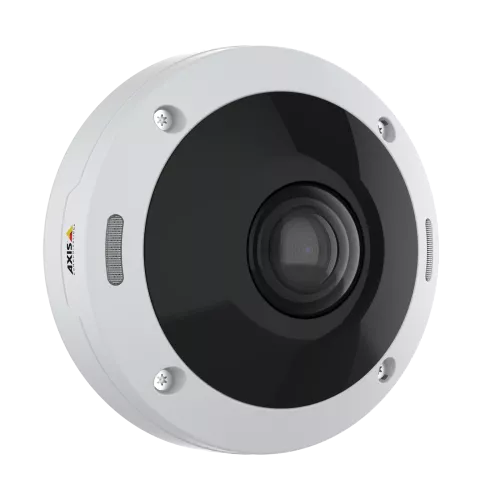

AXIS M4308-PLE 12MP 360° Outdoor Panoramic Camera – AI, IR, WDR, Lightfinder – 02100-001

Comprehensive 360° Coverage for Smarter Surveillance

The AXIS M4308-PLE delivers true 360° panoramic visibility in a discreet, vandal-resistant dome. Using a high-resolution 12MP sensor and Sharpdome 360 optics, it provides crystal-clear detail across the entire field of view — ideal for monitoring open spaces, foyers, corridors, and car parks with a single camera.

Deep Learning Power at the Edge

Equipped with Axis’ ARTPEC-7 System-on-Chip and Deep Learning Processing Unit (DLPU), this camera performs advanced object detection and classification on the edge — identifying humans, vehicles, and motion scenarios without relying on external servers. Installers can configure up to 10 simultaneous analytics rules, such as line crossing and object-in-area triggers, for proactive event monitoring.

Outstanding Image Quality in Any Light

Axis Lightfinder and Forensic WDR technologies deliver true-to-life colours and detailed images in low-light or high-contrast environments. Combined with OptimizedIR (effective beyond 15 m), the M4308-PLE ensures complete visibility even in pitch darkness.

Audio Capture and Situational Awareness

Four built-in microphones and voice enhancement provide clear, directional sound capture with noise suppression. This makes the M4308-PLE ideal for stations, retail spaces, and public environments requiring both visual and audio situational awareness.

Rugged, Installer-Friendly Design

Engineered for demanding outdoor installations, the IP66- and IK10-rated dome withstands harsh weather and impact. Power is supplied via PoE (IEEE 802.3at Type 2 Class 4), simplifying cabling and setup. The included mounting accessories and digital PTZ tools speed up installation and camera alignment.

Advanced Cybersecurity and Integration

Built on Axis Edge Vault, this camera includes secure boot, signed OS, FIPS 140-2-level 1 encryption, and support for HTTPS, IEEE 802.1X, and MACsec. It integrates seamlessly with Axis Camera Station, ONVIF Profiles G, M, S, T, and SIP-based VoIP systems — making it a trusted component in professional, standards-based surveillance networks.

Key Features:

• 12 MP panoramic mini-dome with full 360° overview

• Sharpdome 360 lens with edge-to-edge clarity

• Axis Lightfinder & Forensic WDR for true colour detail in low light

• OptimizedIR illumination – up to 15 m range

• Deep Learning Processing Unit (DLPU) for on-edge AI analytics

• AXIS Object Analytics and Image Health Analytics included

• 4 built-in microphones with noise suppression and voice enhancer

• IP66, NEMA 4X, IK10 (IK09 window) weather and impact protection

• PoE Type 2 Class 4 – typical 7.9 W, max 15.5 W

• Secure hardware (Axis Edge Vault) and FIPS-level data protection

• Compatible with AXIS Camera Station Pro and ONVIF Profiles G/M/S/T

• 5-year manufacturer warranty

Applications:

• Transport hubs, stations, and terminals

• Retail malls and open-plan stores

• Education and healthcare facilities

• Warehouses and logistics centres

• Public buildings and foyers

• Car parks and external entry areas

How Can This Product Help?

For installers and integrators, the AXIS M4308-PLE reduces total camera count by delivering full 360° coverage from a single point, cutting cabling and VMS licensing costs. Deep-learning analytics enhance security accuracy, while ONVIF and SIP integration allow flexible deployment in existing IP systems — ideal for modern, AI-driven surveillance networks.

Why This Matters

Professional projects demand hardware that combines performance, resilience, and intelligence. The M4308-PLE merges all three — providing edge-based analytics, cyber-secure operation, and superior panoramic imaging. Whether it’s a transport concourse or retail atrium, this camera delivers dependable, future-ready situational awareness.

Technical Summary
