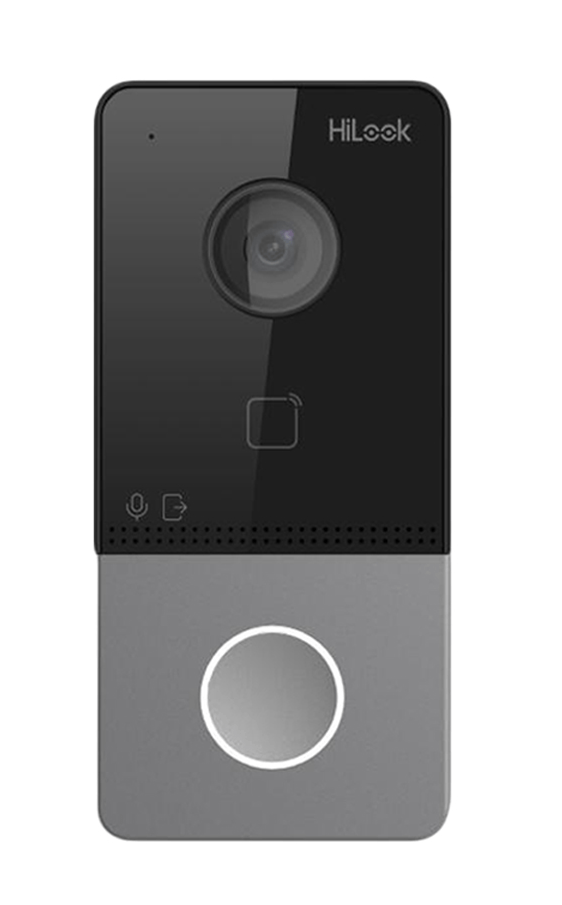

HiLook HA-DS-IP1 2MP IP Video Intercom Door Station with Wi-Fi, PoE, and Mifare Card Reader – IP65 Rated

The HiLook HA-DS-IP1 is a high-performance IP video intercom door station designed for both residential and commercial applications. Combining HD video, wide-angle imaging, and secure access control, it provides a convenient and safe way to manage visitors and deliveries.

Equipped with a 2MP camera delivering 1920 × 1080p resolution and true WDR, it captures clear images even in challenging lighting. The 131° horizontal field of view ensures maximum coverage of your entry point, while IR night vision (up to 3m) maintains visibility after dark.

With built-in two-way audio, visitors can be greeted and verified remotely using the HiLookVision app. The integrated Mifare card reader allows secure keyless entry, making it ideal for multi-tenant or staff access points.

Installation is simple with support for both Wi-Fi and PoE, reducing cabling requirements. The IP65 weather-resistant housing ensures reliable performance in outdoor environments, while surface-mount design keeps installation neat and quick.

Key Features:

• 2MP Full HD Camera – Crisp, detailed video at 1080p with true WDR for balanced lighting.

• Wide-Angle View – 131° horizontal and 78° vertical coverage reduces blind spots.

• Night Vision – IR illumination up to 3m for clear images in low light.

• Two-Way Audio – Built-in mic and speaker with noise suppression and echo cancellation.

• Mifare Card Reader – Secure access control via 13.56 MHz Mifare cards.

• Flexible Connectivity – Supports both Wi-Fi and PoE for versatile installations.

• Weatherproof Design – IP65 rating for reliable outdoor performance.

• Remote Access – View, talk, and unlock doors via the HiLookVision app.

• Easy Installation – Surface-mount design with low power consumption (<10W).

• Integration Ready – Compatible with indoor stations and up to 8 doorphone links.

Technical Specifications:

Camera & Video

• Resolution: 1920 × 1080p, 720p (mainstream); 704 × 576 (sub stream)

• Field of View: H: 131°, V: 78°

• Video Compression: H.264

• Night Vision: IR, 3m range

• Image Enhancements: True WDR, DNR, BLC

Audio

• Two-way communication

• Built-in omnidirectional microphone and loudspeaker

• Audio Codec: G.711U, 64 Kbps

• Noise suppression and echo cancellation

Access Control

• Card Reader: Mifare, 13.56 MHz

• Lock Control: 1 relay output

• Door Contact Input: 1

• Exit Button Input: 1

Networking

• Ethernet: 10/100 Mbps

• Wireless: Wi-Fi 2.4 GHz

• Protocols: TCP/IP, RSTP

General

• Operating Temperature: –40°C to +53°C

• Operating Humidity: 10%–95%

• Power: IEEE802.3af PoE or 12V DC

• Power Consumption: <10W

• Dimensions: 138 × 65 × 27 mm

• Mounting: Surface

• Weather Rating: IP65

The HA-DS-IP1 makes entry management more secure and convenient. Whether it’s verifying visitors before granting access, monitoring your front door remotely, or providing keyless card entry for staff, this intercom station offers peace of mind and professional-grade performance. Its wide field of view and weather-resistant design make it suitable for any property type.
